Create custom product link type in Magento 2: Part 2

How to create a custom product link type grid in Magento 2?

As we see how to add a custom product link type using Data Patch in the previous blog, now we will get an idea of how to create a custom product link type UI grid and how to change the label of the product type section in the admin add/edit product form.

>> Create di.xml file to define custom product link type

File Path: app/code/Mage2/CustomProductLink/etc/di.xml

<?xml version="1.0"?>
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xsi:noNamespaceSchemaLocation="urn:magento:framework:ObjectManager/etc/config.xsd">

    <!-- Retrieve saved products in custom link type UI grid start -->
    <preference for="Magento\Catalog\Model\Product"
                type="Mage2\CustomProductLink\Model\Product"/>
    <!-- Retrieve saved products in custom link type UI grid end -->

    <!-- Inject LinkTypeProvider dependency start -->
    <type name="Magento\Catalog\Model\Product\LinkTypeProvider">
        <arguments>
            <argument name="linkTypes" xsi:type="array">
                <item name="parts" xsi:type="const">
                    Mage2\CustomProductLink\Model\Product::PARTS_LINK_TYPE_ID
                </item>
            </argument>
        </arguments>
    </type>
    <!-- Inject LinkTypeProvider dependency end -->

    <!-- Create custom link type model start -->
    <preference for="Magento\Catalog\Model\Product\Link"
                type="Mage2\CustomProductLink\Model\Product\Link"/>
    <!-- Create custom link type model end -->

    <!-- Inject CollectionProvider dependency start -->
    <type name="Magento\Catalog\Model\ProductLink\CollectionProvider">
        <arguments>
            <argument name="providers" xsi:type="array">
                <item name="parts" xsi:type="object">
                    Mage2\CustomProductLink\Model\ProductLink\CollectionProvider\PartsLinkProducts
                </item>
            </argument>
        </arguments>
    </type>
    <!-- Inject CollectionProvider dependency end -->

    <!-- Update product model class start -->
    <type name="Mage2\CustomProductLink\Model\ProductLink\CollectionProvider\PartsLinkProducts">
        <plugin name="update_parts_link_model" type="Mage2\CustomProductLink\Plugin\UpdatePartsLinkModel"/>
    </type>
    <!-- Update product model class end -->
</config>

>> Retrieve saved products in custom link type UI grid

File path: app/code/Mage2/CustomProductLink/Model/Product.php

<?php

declare(strict_types=1);

namespace Mage2\CustomProductLink\Model;

class Product extends \Magento\Catalog\Model\Product
{
    public const PARTS_LINK_CODE = 'parts';
    public const PARTS_LINK_TYPE_ID = 6;

    /**
     * Retrieve array of parts products
     *
     * @return array
     */
    public function getPartsProducts(): array
    {
        if (!$this->hasPartsProducts()) {
            $products = [];
            foreach ($this->getPartsProductCollection() as $product) {
                $products[] = $product;
            }
            $this->setPartsProducts($products);
        }
        return $this->getData('parts_products');
    }

    /**
     * Retrieve parts products identifiers
     *
     * @return array
     */
    public function getPartsIds(): array
    {
        if (!$this->hasPartsProductIds()) {
            $ids = [];
            foreach ($this->getPartsProducts() as $product) {
                $ids[] = $product->getId();
            }
            $this->setPartsProductIds($ids);
        }
        return $this->getData('parts_product_ids');
    }

    /**
     * Retrieve collection parts product
     *
     * @return \Magento\Catalog\Model\ResourceModel\Product\Link\Product\Collection
     */
    public function getPartsProductCollection(): \Magento\Catalog\Model\ResourceModel\Product\Link\Product\Collection
    {
        $collection = $this->getLinkInstance()
            ->setLinkTypeId(self::PARTS_LINK_TYPE_ID)
            ->getProductCollection()
            ->setIsStrongMode();
        $collection->setProduct($this);

        return $collection;
    }

    /**
     * Retrieve collection parts link
     *
     * @return \Magento\Catalog\Model\ResourceModel\Product\Link\Collection
     */
    public function getPartsLinkCollection(): \Magento\Catalog\Model\ResourceModel\Product\Link\Collection
    {
        $collection = $this->getLinkInstance()->setLinkTypeId(self::PARTS_LINK_TYPE_ID)->getLinkCollection();
        $collection->setProduct($this);
        $collection->addLinkTypeIdFilter();
        $collection->addProductIdFilter();
        $collection->joinAttributes();

        return $collection;
    }
}

>> Create custom link type model

File Path: app/code/Mage2/CustomProductLink/Model/Product/Link.php

<?php

declare(strict_types=1);

namespace Mage2\CustomProductLink\Model\Product;

use Mage2\CustomProductLink\Model\Product;

class Link extends \Magento\Catalog\Model\Product\Link
{
    /**
     * Set parts link type id
     *
     * @return $this
     */
    public function usePartsLinks(): static
    {
        $this->setLinkTypeId(Product::PARTS_LINK_TYPE_ID);
        return $this;
    }
}

>> Inject CollectionProvider dependency

File Path: app/code/Mage2/CustomProductLink/Model/ProductLink/CollectionProvider/PartsLinkProducts.php

<?php

declare(strict_types=1);

namespace Mage2\CustomProductLink\Model\ProductLink\CollectionProvider;

use Magento\Catalog\Model\Product;
use Magento\Catalog\Model\ProductLink\CollectionProviderInterface;

class PartsLinkProducts implements CollectionProviderInterface
{
    /**
     * Get part products
     *
     * @param Product $product
     * @return array
     */
    public function getLinkedProducts(Product $product): array
    {
        $products = $product->getPartsProducts();
        if (!isset($products)) {
            return [];
        }

        return $products;
    }
}

>> Update product model class

File Path: app/code/Mage2/CustomProductLink/Plugin/UpdatePartsLinkModel.php

<?php

declare(strict_types=1);

namespace Mage2\CustomProductLink\Plugin;

use Mage2\CustomProductLink\Model\ProductFactory;
use Mage2\CustomProductLink\Model\ProductLink\CollectionProvider\PartsLinkProducts;

class UpdatePartsLinkModel
{
    /**
     * @var ProductFactory
     */
    private ProductFactory $productFactory;

    /**
     * @param ProductFactory $productFactory
     */
    public function __construct(
        ProductFactory $productFactory
    ) {
        $this->productFactory = $productFactory;
    }

    /**
     * @param PartsLinkProducts $subject
     * @param object $product
     * @return array
     */
    public function beforeGetLinkedProducts(PartsLinkProducts $subject, object $product): array
    {
        $currentProduct = $this->productFactory->create()->load($product->getId());
        return [$currentProduct];
    }
}

>> Create di.xml file to create custom product link type UI grid

File Path: app/code/Mage2/CustomProductLink/etc/adminhtml/di.xml

<?xml version="1.0"?>
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xsi:noNamespaceSchemaLocation="urn:magento:framework:ObjectManager/etc/config.xsd">
    <!-- Create custom product link type UI grid start -->
    <preference for="Magento\Catalog\Ui\DataProvider\Product\Form\Modifier\Related"
                type="Mage2\CustomProductLink\Ui\DataProvider\Product\Form\Modifier\PartsRelated"/>

    <type name="Magento\Catalog\Ui\DataProvider\Product\Form\Modifier\Related">
        <plugin name="update_modify_meta" type="Mage2\CustomProductLink\Plugin\UpdateModifyMeta"/>
    </type>
    <!-- Create custom product link type UI grid end -->
</config>

>> Add custom product link type scope

File Path: app/code/Mage2/CustomProductLink/Ui/DataProvider/Product/Form/Modifier/PartsRelated.php

<?php

declare(strict_types=1);

namespace Mage2\CustomProductLink\Ui\DataProvider\Product\Form\Modifier;

use Magento\Catalog\Api\ProductLinkRepositoryInterface;
use Magento\Catalog\Api\ProductRepositoryInterface;
use Magento\Catalog\Helper\Image as ImageHelper;
use Magento\Catalog\Model\Locator\LocatorInterface;
use Magento\Catalog\Model\Product\Attribute\Source\Status;
use Magento\Catalog\Ui\DataProvider\Product\Form\Modifier\Related;
use Magento\Eav\Api\AttributeSetRepositoryInterface;
use Magento\Framework\UrlInterface;
use Mage2\CustomProductLink\Model\Product;

class PartsRelated extends Related
{
    public function __construct(
        LocatorInterface $locator,
        UrlInterface $urlBuilder,
        ProductLinkRepositoryInterface $productLinkRepository,
        ProductRepositoryInterface $productRepository,
        ImageHelper $imageHelper,
        Status $status,
        AttributeSetRepositoryInterface $attributeSetRepository,
        $scopeName = '',
        $scopePrefix = ''
    ) {
        parent::__construct($locator, $urlBuilder, $productLinkRepository, $productRepository, $imageHelper, $status,
            $attributeSetRepository, $scopeName, $scopePrefix);
    }

    /**
     * Retrieve all data scopes
     *
     * @return array
     */
    protected function getDataScopes()
    {
        $data = parent::getDataScopes();
        $data[] = Product::PARTS_LINK_CODE;
        return $data;
    }
}

>> Create a plugin to add parts product link config to product page

File Path: app/code/Mage2/CustomProductLink/Plugin/UpdateModifyMeta.php

<?php

declare(strict_types=1);

namespace Mage2\CustomProductLink\Plugin;

use Magento\Catalog\Ui\DataProvider\Product\Form\Modifier\Related;
use Mage2\CustomProductLink\Model\Product;
use Magento\Ui\Component\Form\Fieldset;

class UpdateModifyMeta extends Related
{
    /**
     * After plugin to add parts product link config to product page
     *
     * @param Related $subject
     * @param array $result
     * @return array
     * @SuppressWarnings(PHPMD.UnusedFormalParameter)
     */
    public function afterModifyMeta(Related $subject, array $result): array
    {
        $result[Related::GROUP_RELATED]['children'][$this->scopePrefix . Product::PARTS_LINK_CODE] = $this->getPartsFieldset();
        $result[Related::GROUP_RELATED]['arguments']['data']['config']['label'] =
            __('Related Products, Up-Sells, Cross-Sells and Parts');

        return $result;
    }

    /**
     * Prepares config for the Parts products fieldset
     *
     * @return array
     */
    protected function getPartsFieldset()
    {
        $content = __('Part products are customers parts related to a product.');

        return [
            'children' => [
                'button_set' => $this->getButtonSet(
                    $content,
                    __('Add Part Products'),
                    $this->scopePrefix . Product::PARTS_LINK_CODE
                ),
                'modal' => $this->getGenericModal(
                    __('Add Part Products'),
                    $this->scopePrefix . Product::PARTS_LINK_CODE
                ),
                Product::PARTS_LINK_CODE => $this->getGrid($this->scopePrefix . Product::PARTS_LINK_CODE),
            ],
            'arguments' => [
                'data' => [
                    'config' => [
                        'additionalClasses' => 'admin__fieldset-section',
                        'label' => __('Part Products'),
                        'collapsible' => false,
                        'componentType' => Fieldset::NAME,
                        'dataScope' => '',
                        'sortOrder' => 100,
                    ],
                ],
            ]
        ];
    }
}

And that’s it, after creating all the above files, you need to run the following command:
bin/magento setup:upgrade

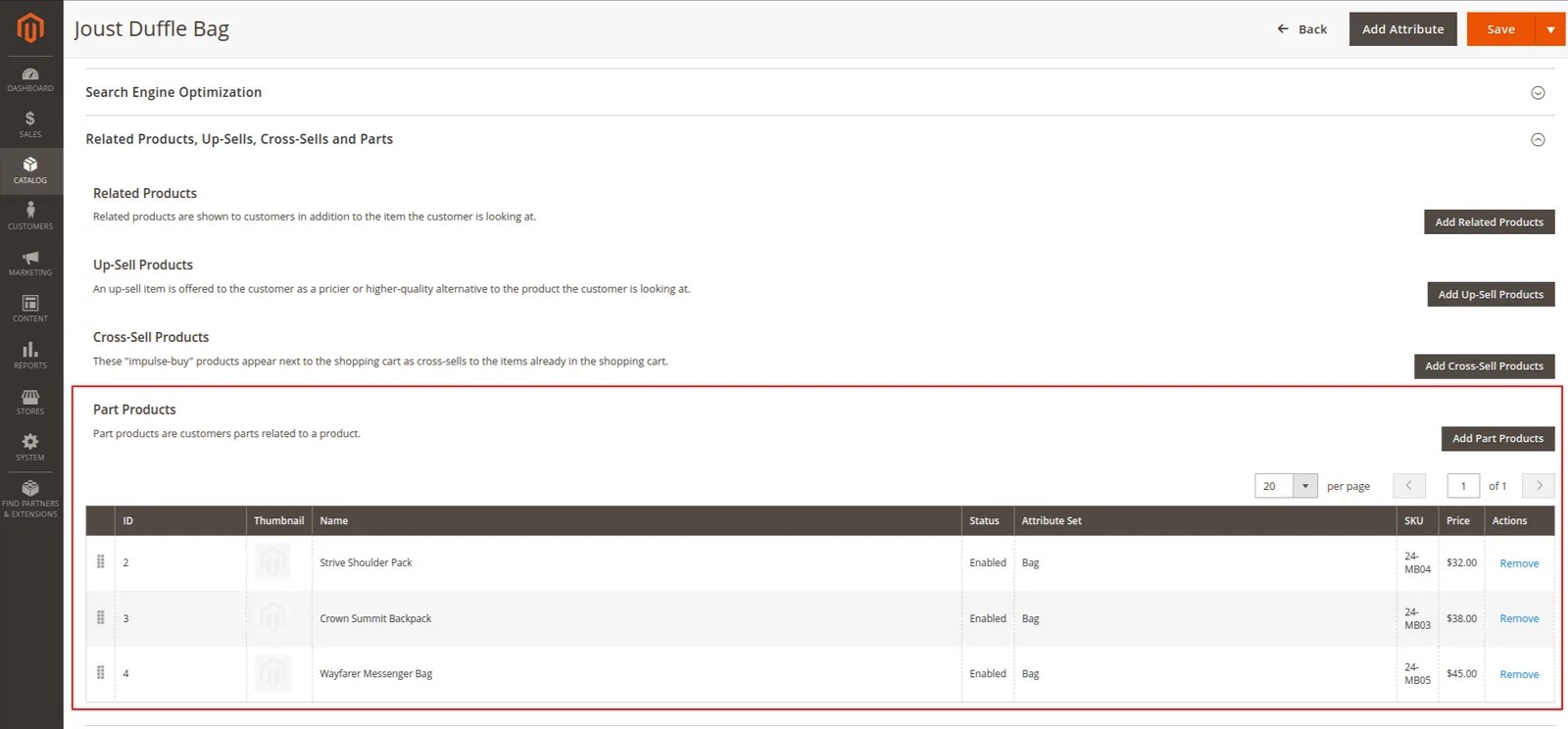

Then you can see a custom product link type UI grid like the following screenshot:

We hope this blog may be understandable and useful to you. You can email us at mage2developer@gmail.com if we missed anything or want to add any suggestions. We will respond to you as soon as possible. Happy to help 🙂
